J1772 plug and inlet resistor diagram

Post at May 04, 2017 by Kevin

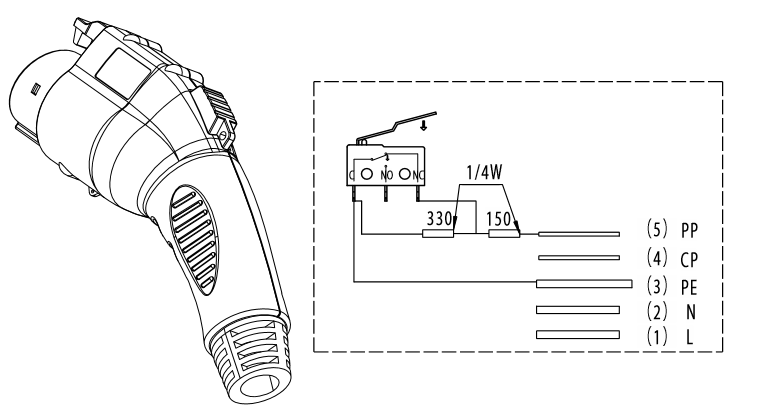

Many DIYer buy J1772 plug from us to build a J1772 charging point, usually the ask us about the resistors in the plug,  in SAE J1772 stardand plug, there have two resistor in it. one is 330Ω and other is 150Ω.
