Battery State Indicator Meter 12/24 Volt 36 Volt 48 Volt for Golf Cart or Solar Panel
US $16 / Piece
- 12/24V 36V 48V
- Free Shipping to United States via Register Airmail

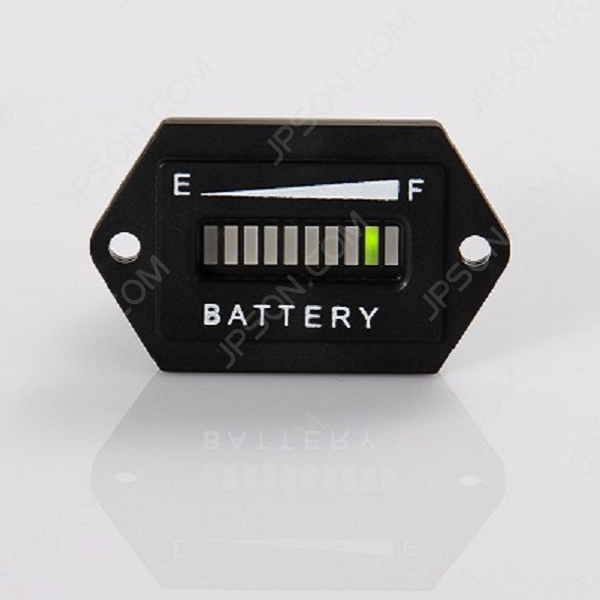

10 LED Bar Digital Battery Discharge/Charge State Indicator Meter 12/24 Volt 36 Volt 48 Volt for Golf Cart or Solar Panel (Rhombus)
Battery Indictor,SRT-BI001,Solar System, Forklift, Golf Cart or other DC battery powered equipment
Used for forklift trucks, Golf Carts, RV's, Boats, Scooters and electric vehicle. etc
For use on any equipment where the battery status is important. It is specifically designed for battery power equipment to monitor the charge status of the battery or batteries.
- High reliability
- Low cost and small size
- Lower operating current
- Wide operating voltage and temperature range
- Solid state electronics
- Quartz crystal
- Display: 10-bar LED indicates the battery state of discharge.

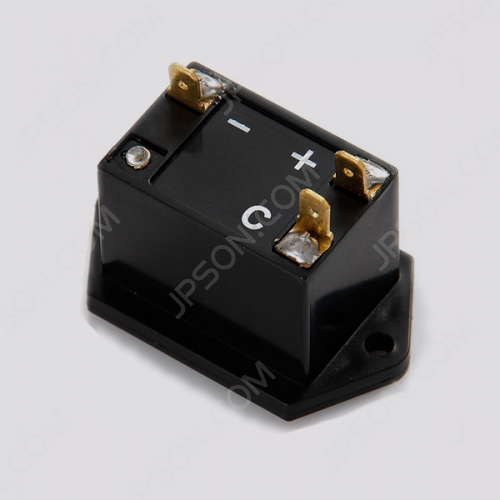

- Terminals: Max. 3; 3/16”-spades
- Mounting: U-shape bracket
- Panel Cutout (mm): 37x25mm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -50°C to +90°C
- Humidity: 95% RH (Non Condensing) at 38°C
- Operating voltage: 12/24V,36V,48V,72V
- Battery indicating range can be customized (e.g. 2.04Vpc at full, 1.73Vpc at empty).
- EEPROM memory
