J1772電動汽車充電器 16A 110V~250V 贈送攜行袋

產品參數

• Rated Current: 16A
• Power Plug: EU/US/AU/UK
• Standard: SAE J1772-2009
• Cable Length: 5m
• Rated Voltage: 110V~250V

產品詳情

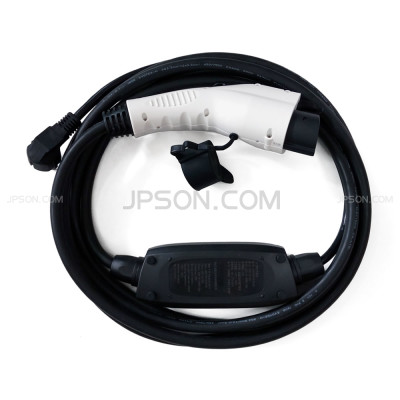

SAE J1772 Type 1 便攜式充電器 110V~250V 16A 用于電汽車充電 5m 電纜 (附贈攜行袋)

Notes:

Buy our charger will get a  as  a present.

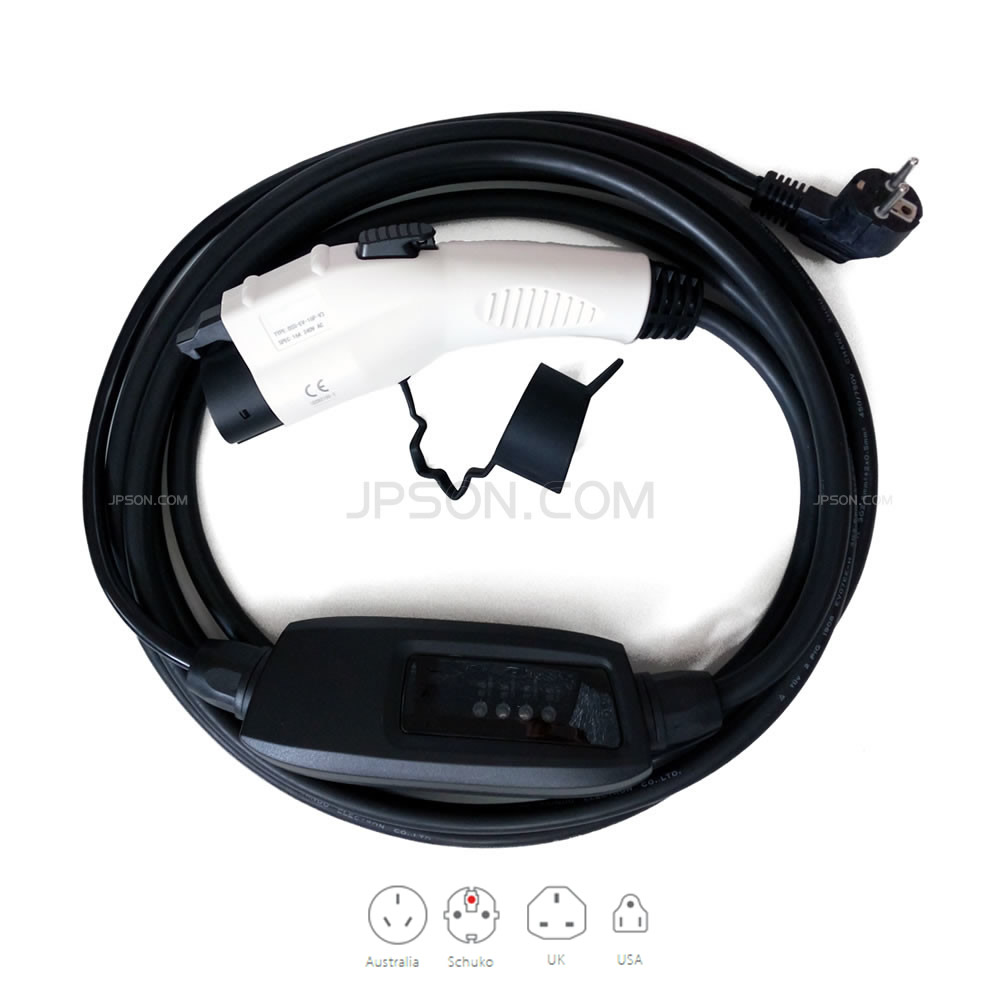

This charger's power plug can be : Schuko (EU) plug, US plug ,AU Plug ,UK plug, please leave a message when you order.

This charger's voltage range is 110V~250V.

Fit EVs: Nissan Leaf, Totota Prius RAV4 Prius Plug-in, Fluence ZE, Chevrolet Volt Spark EV,Mitsubishi i-MiEV, BMW i3 i8, Cadillac ELR, Fiat 500e, Ford C-max Energi Fusion Energi Focus Electric, Honda Accord Plug-in Hybrid, Smart for Tow, Porsche Panamera S e-Hybrid, Volkswagen e- Golf, Kia Solu EV.

The contronl box not have swith and can not ajust the charging current.

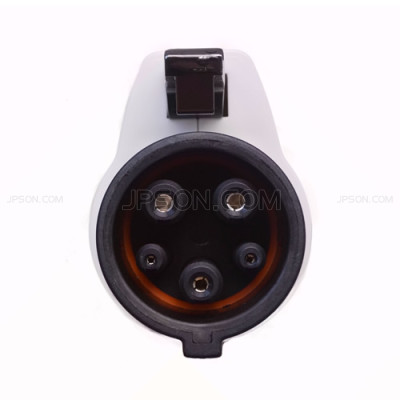

• Charging plug meet SAE J1772 2010 standard
• Power plug meet NEMA 5-15 standard
• Control box meet  SAE J1772 2010 control principle
• Excellent protection performance, protection grade IP55(working conditon)

參數

• Reted current and voltage: 110V~250V AC 16A
• Insulation resistance: >1000MΩ (DC 500V)
• Terminal temperature rise: < 50K
• Withstand voltage: 2000V
• Working temperature: -30 ° C ~ + 50° C
• Mechanical life:no-load plug in/pull out> 10000 times
• Impat of external force: can afford 1m drop and 2T vechicle run over pressure

材料

• Case Material: Thermo plastic,lame retardant grade UL94-0
• Contact Pin: Copper alloy, silver + thermo plastic on the top
• Sealing gasket: rubber or silicon rubber

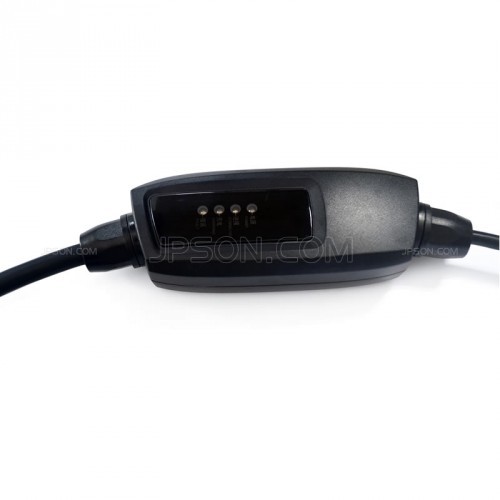

控制盒

• Leakage protection(Restart recover)
• Over-voltage under-voltage protection (self-checking recover)
• Overload protection (self-checking recover)
• Lightning protecton

充電器狀態

	電源	連接	充電	錯誤	狀態說明
1	○	○	○	○	No Power
2	●	○	○	○	Power on, not connnect
3	●	●	○	○	Connected, not charg
4	●	●	◎	○	Charging
5	●	●	●	○	Charg Finish
6	●	○	○	●	Power-on Self-test Error
7	●	●	○	●	Communication Error
8	●	●	◎	●	Over-current protection
9	●	◎	◎	●	Earth leakage protection
10	●	○	○	◎	Overvoltage undervoltage protection
11	●	●	●	●	Overheating Protection

○ Light off; ● Green light on; ◎ Green light flashing;● Red light on; ◎ Red light flashing

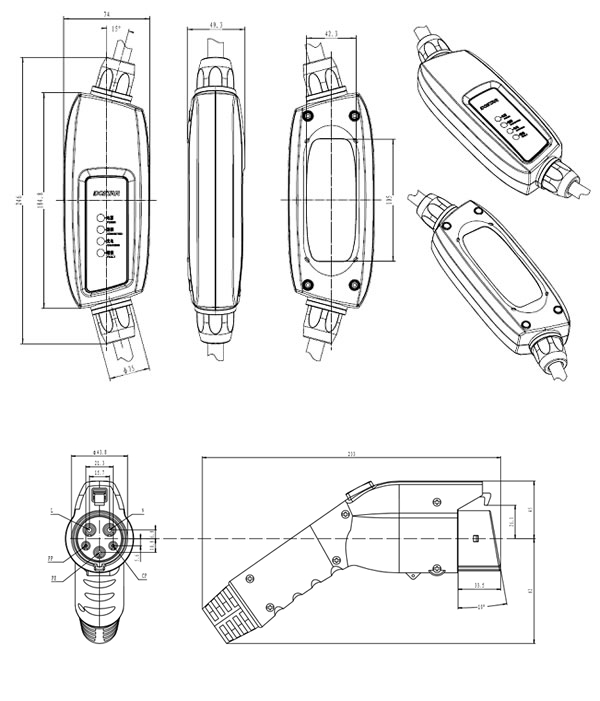

Modle selection and the standard wiring

Model	Relate Current	Cable Spec.	Calbe Length	Cable Diamenter
3030-PSE-16-XC-ES	16A	3*2.5mm2+0.5mm2	5m	12mm

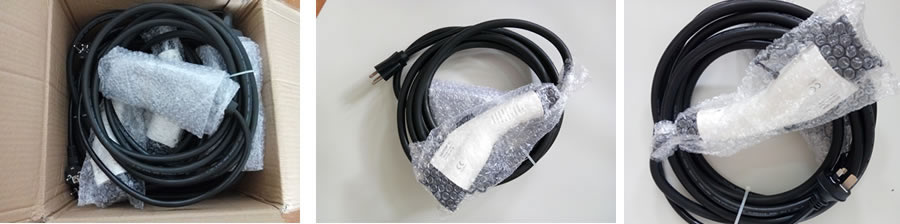

產品包裝:

• 1 x J1772 16A 便攜式充電

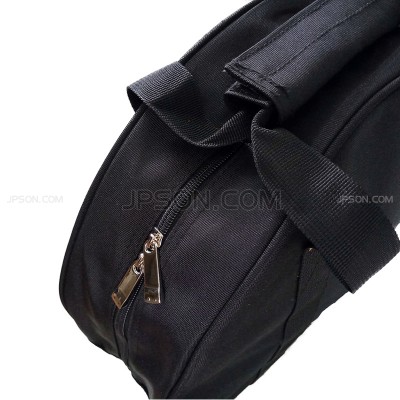

• 1 x  攜行袋





Related Product: EV Cable Carry Bag,  EV Charger Bag
