Verrouillage de prise de type 2 A

Mouse over to zoom in

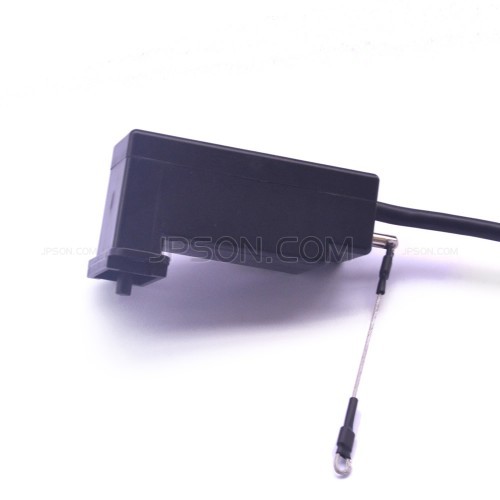

62196-2 Serrure de type 2 (actionneur de verrouillage) modèle A

Unit Price

US $29 / Piece

US $35

Quantité
Only 2 left in stock
Frais d’expédition
Free Shipping to United States via Register Airmail

Ships within 2 business days, estimated delivery time days

Full Refund

Not receive your order

Refund or Keep

Items not as described

Secured by SSL

Pay by Paypal(credit card)

Spécifications

  • Modle: DSIEC-EL

Aperçu

IEC 62196-2 Type2  Socket Lock(Interlocking Actuator) Model A(DSIEC-EL)

Interlocking actuator for: our barnd IEC 62196-2 Socket(Male 16A, Male 32A, Female 16A, Female 32A)

Features

  • Instantaneous power supply mode, low energy loss
  • Small size, suitable for small space installation
  • Power failure or malfunction can be manual release
  • Non-detachable shell protection, protection grade IP55

Electrical Performance

  • Model: JP-EL-001
  • Reted current: 3A / 1.5A
  • Working voltage: 12V / 24V DC
  • Power: 36w
  • Withstand voltage: 1000V
  • Working cycle: 5%ED activation < 200ms, continue 3 seconds max
  • Insulation class: E
  • Working temperature: -30°C ~+ 50°C
  • CE, TUV approved

Materials

  • Housing material: thermoplastic, flammability class UL94 HB

Mechanical Properties

  •  Mechanical life: operating cycle > 50000 times

Standard Wiring

  • Cable specification: TUV 4*0.25mm2
  • Cable length: 600mm
  • Cable diameter: 4mm
  • Cable color: Black
  Actuator(magnet) Position control(micro switch)
Wire Color Red White Blue Red
Locked +12V 0V 0V
Unlocked 0V 12V 12V
Max Current

Switch-on: 3A ;  Continuous: 0A

Rated Impulse Withstand Voltage

(Operating voltage < 30V) ;  600V DC

Electrical Diagram

62196-2 Type 2 Electromagnetic Lock electrical diagram

4 wiring schematic wiring diagram
