62196-2 Socket Female 32A 3 Point Fixing

Mouse over to zoom in

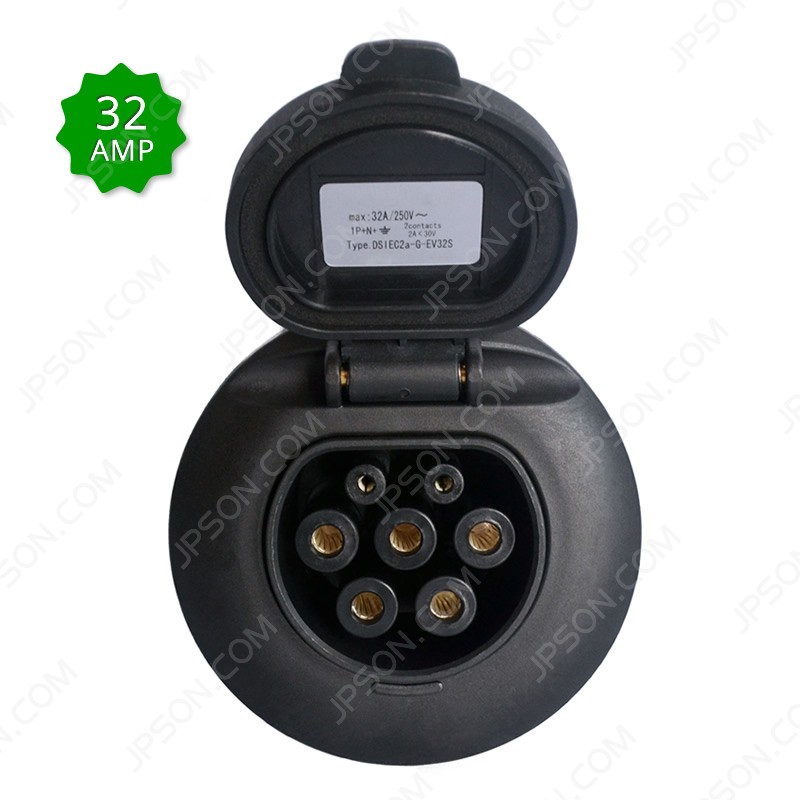

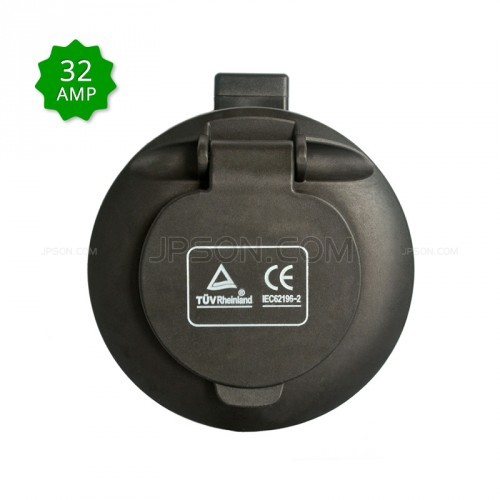

62196-2 Type 2 Socket/Outlet Female 32A 3 Point Fixing for EV Charging

127 SalesSKU: #1043 Add to wish list
Unit Price

US $75 / Piece

US $98

Optional
No Electronic Locker With Electronic Locker
Quantity
Only 3 left in stock
Shipping Cost
Free Shipping to United States via Register Airmail

Ships within 1 business days, estimated delivery time days

Full Refund

Not receive your order

Refund or Keep

Items not as described

Secured by SSL

Pay by Paypal(credit card)

Specifications

  • Rated Current: 32A
  • Model: DSIEC2a-EV32S

Overview

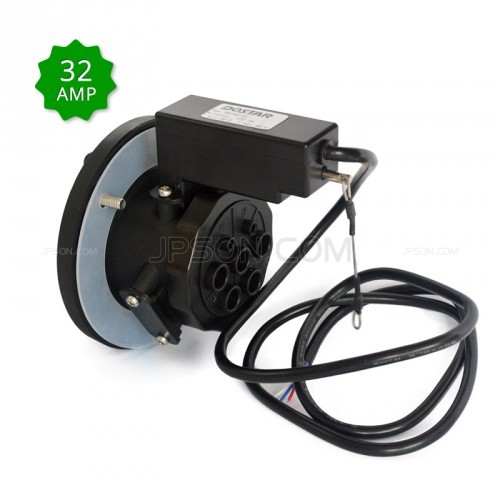

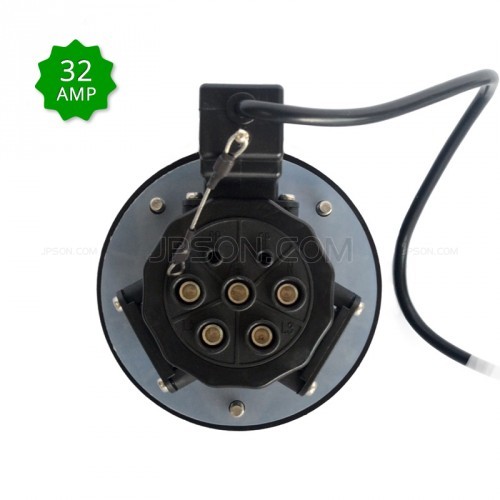

IEC 62196-2(Type 2) Socket/Outlet Female(Charging Station Side) 32A 3 Point Fixing with Lid,(Electromagnetic Lock optional)

Notes: if you need with Lock please leave a  order message tell us which type lock.

>>>> We have 3 types of locks (https://www.jpson.com/search?query=Interlocking+Actuator)

Visit our: Type2 Female Socket 16A, 4 Point Fixing Type2 Socket

  • Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
  • Nice shape and easy to use, protection class IP54(in mated conditions)

Parameters

  • 3 Point Fixing
  • Rated current: 32A
  • Operation voltage: 240/415V AC
  • Insulation resistance: > 1000MΩ (DC500V)
  • Terminal temperature rise: < 50K
  • Withstand voltage: 2000V
  • Vibration resistance: Meet JDQ 53.3 requirements
  • Contact impedance: 0.5mΩ Max

Materials

  • Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
  • Contact Pin: Copper alloy, silver plating
  • Sealing gasket: rubber or silicon rubber

Apply to Vehicle

  • Tesla Model S, Chevrolet Volt, Ford Focus Electric, Ford C-Max Energi,Nissan Leaf, Peugeot Ion, Toyota Prius

Dimensions

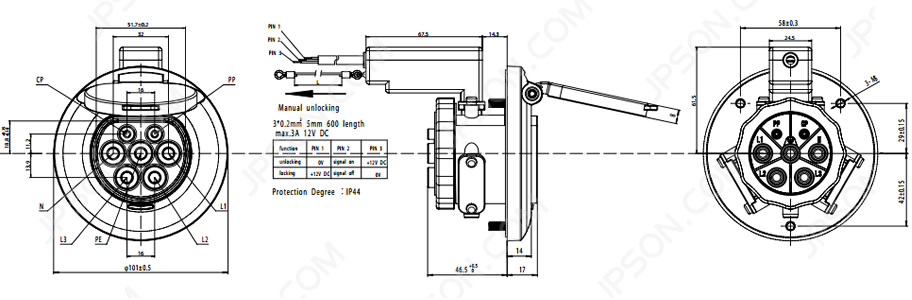

Type2 Female Socket CAD Drawing
