SAE J1772 Inlet/Socket

Mouse over to zoom in

SAE J1772 Inlet/Socket 32A/16A/50A EV Charging

544 SalesSKU: #1034 Add to wish list
Unit Price

US $55 / Piece

US $72

Type
32A No Cable 32A 1.5m Cable 32A 3m Cable 16A No Cable 16A 1.5 Cable 16A 3m Cable 50A No Cable 50A 1m Cable
Quantity
In stock
Shipping Cost
Free Shipping to United States via Register Airmail

Ships within 2 business days, estimated delivery time days

Full Refund

Not receive your order

Refund or Keep

Items not as described

Secured by SSL

Pay by Paypal(credit card)

Specifications

  • Rated Current: 32A/16A/50A
  • Rated Voltage: 120 ~ 240V AC
  • Standard: SAE J1772-2009
  • Certification: CE & UL
  • Model: DSS-EV32S

Overview

SAE J1772(Type1) Inlet/Socket/Receptacle 16A/32A/50A for Electric Vehicle Charging with 0m,1m,1.5m,3m Cord

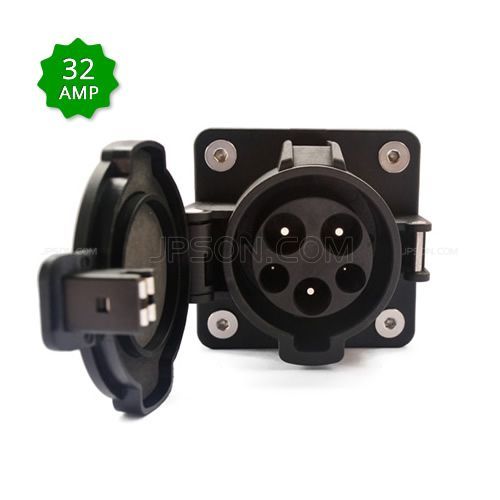

This socket include 5 silvering copper alloy pins(you can see them in the first picture)

Click to visit: J1772 Inlet 16A

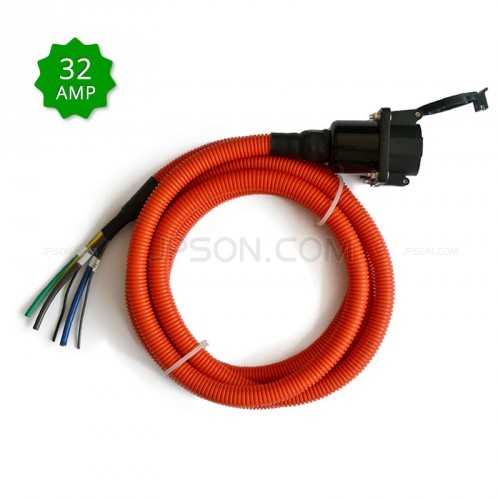

  • Cord Length: Free end, 1.5m(4.92ft), 3m(9.84ft)
  • Meet SAE J1772 2009 (Type 1) North American standard, UL Rated
  • Nice shape and easy to use, protection class IP54(in mated conditions)
  • Apply for most of American EV car or DIY a J1772 adapter box.

Parameters

  • Model: DSI-EV32S-NC, DSI-EV32S-1.5C, DSI-EV32S-3C
  • 5 Pins( L,N,CP,PP,PE)
  • Rated current: 30A~32A
  • Working voltage: 120 ~240V AC
  • Insulation resistance: > 1000M Ω (DC 500V)
  • Terminal temperature rise: <50K
  • Withstand voltage: 2000V
  • Contact impedance: 0.5m Ω Max
  • Vibration resistance: Meet JDQ 53.3 requirements
  • Working temperature: -30 ° C ~ + 50° C
  • CE & UL Approval
  • Cable size: 3x6mm2 +2x0.75mm2

Materials

  • Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
  • Contact bush: Copper alloy, silver plating
  • Sealing gasket: rubber or silicon rubber
  • Switch hook: Zinc Alloy
  • Cable: (TUV,UL Rated)

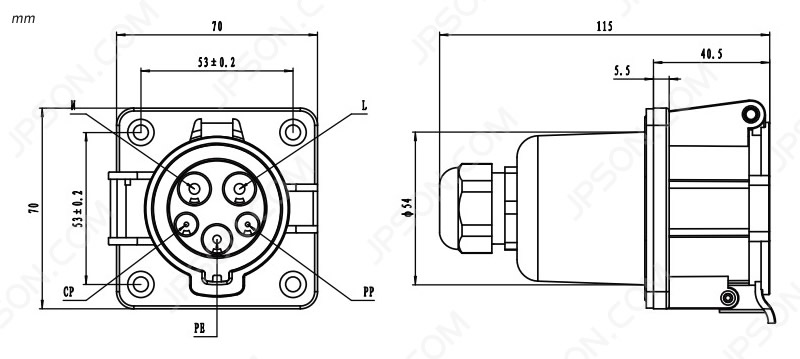

Structure Drawing

J1772 Socket Structure

Related Product: J1772 receptacle, J1772 ConnectorJ1772 holsterJ1772 holder, J1772 Charger
