62196 Type 2 Connector/Cable 3 Phase 32A Level 2 for Electric Vehicle EV Charging

21 SalesItem#: 1050 Add to wish list
Unit Price:

US $199 / Piece

US $210

Cable Length:
3m Cable 5m Cable
Only 2 left in stock
Shipping Cost:
Free Shipping to United States via Register Airmail
Ships within 3 business days, estimated delivery time days

Full Refund

Not receive your order

Refund or Keep

Items not as described

Secured by SSL

Pay by Paypal(credit card)

Base Infomation

  • Rated Current:32A
  • Phase:3 Phase

Product Description

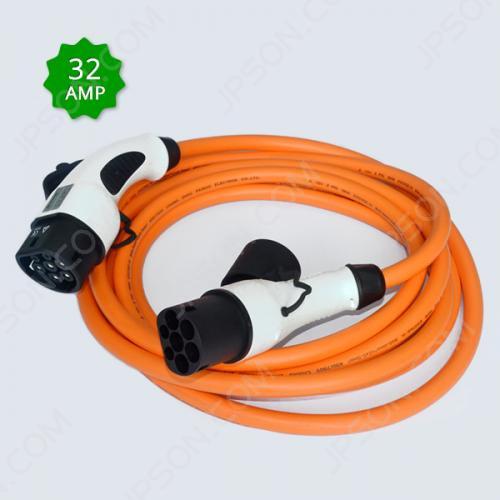

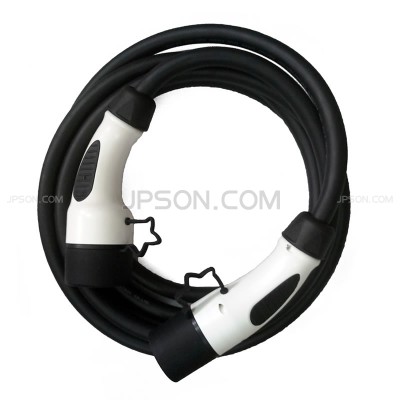

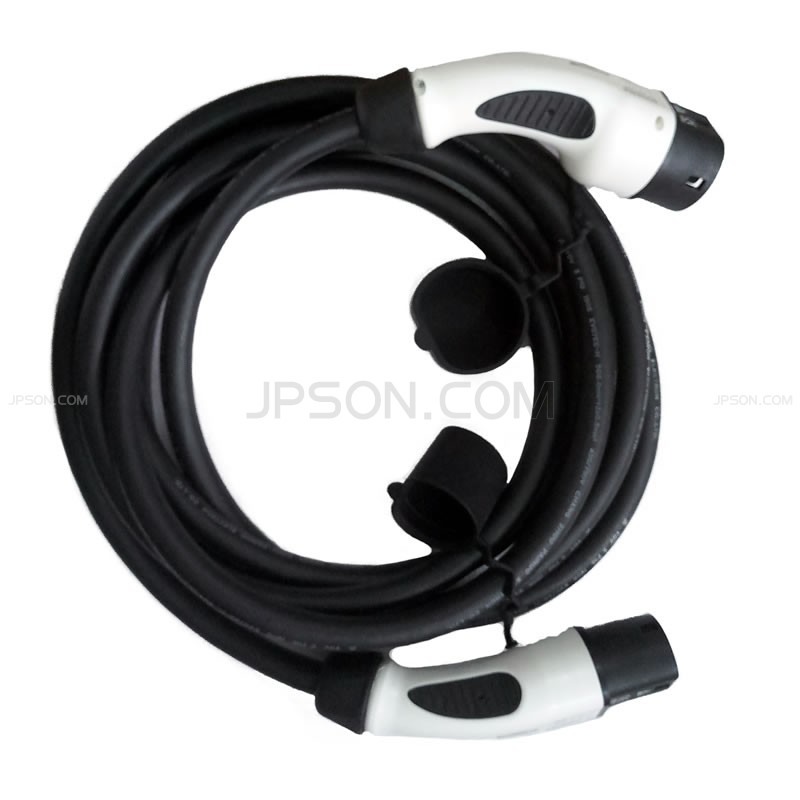

IEC 62196-2(Type 2,Mennekes) Male to Female Connector/Cable 32A 3 Phase Level 2 for Electric Vehicle (EV) Charging

Work for:Tesla Model S, Smart, Renault Zoe, BMW i3 i8, Audi e-Tron, VW e-UP, VW e-Golf and other EV cars.

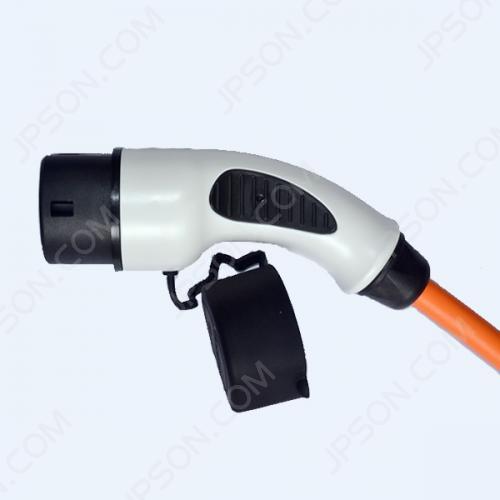

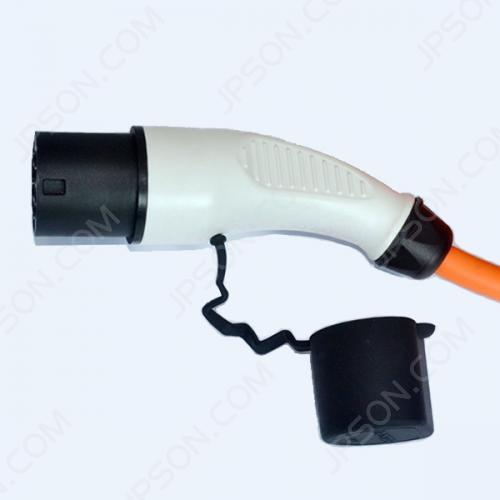

  • Cord lenght: 3m, 5m or customized. Rubber cap included.
  • Meet IEC 62196-2 standards(Mennekes, Type 2)
  • Nice shape and easy to use, protection class IP54(in mated conditions)


  • Model: DSIEC2e-EV16P-NC
  • Reted current: 32A
  • Working voltage: 250V AC
  • Insulation resistance: > 1000M Ω
  • Terminal temperature rise: <50K
  • Withstand voltage: 2000V
  • Contact impedance: 0.5m Ω Max
  • Vibration resistance: Meet JDQ 53.3 requirements
  • Working temperature: -30 ° C ~ + 50° C


  • Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
  • Contact Pin: Copper alloy, silver or nickel plating
  • Sealing gasket: rubber or silicon rubber

Insert arrangements and functional defination

Mark Functional defination
1-(L1) AC power
2-(L2) AC power
3- (L3) AC power
4-(N) Netural
5-(PE) PE
6-(CP) Control confirmation
7-(PP) Connection confirmation

Modle selection and the standard wiring

Model Number of inserts Cable Spec. Remark



7 3*6mm2+2*0.5mm2

The length of the cable can be customized
