Type 2 Female Plug 32A

Mouse over to zoom in

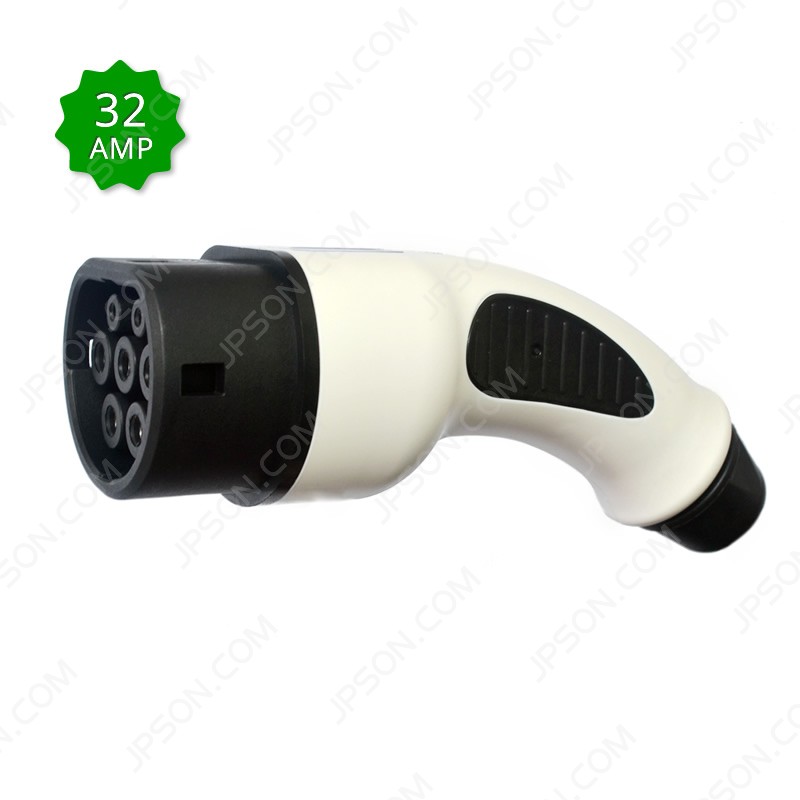

IEC 62196-2 Type 2 Plug Female 32A for EV Charging

108 SalesSKU: #1028 Add to wish list
Unit Price

US $76 / Piece

US $86

Cable Length
No Cord(single phase) 3m(single phase) 3m(3 phase) 5m(single phase) 5m(3 phase) No Cord(3 phase)
Quantity
In stock
Shipping Cost
Free Shipping to United States via Register Airmail

Ships within 1 business days, estimated delivery time days

Full Refund

Not receive your order

Refund or Keep

Items not as described

Secured by SSL

Pay by Paypal(credit card)

Specifications

  • Rated Current: 32A
  • Model: DSIEC2e-EV32P

Overview

IEC 62196-2(Type 2) Plug/Connector Female(EV Side) 32Amp for Electric Vehicle Charging

Visit our: Type 2  Female Plug 16A

Work for:Tesla Model S, Smart, Renault Zoe, BMW i3 i8, Audi e-Tron, VW e-UP, VW e-Golf

  • Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
  • Nice shape and easy to use, protection class IP54(in mated conditions)

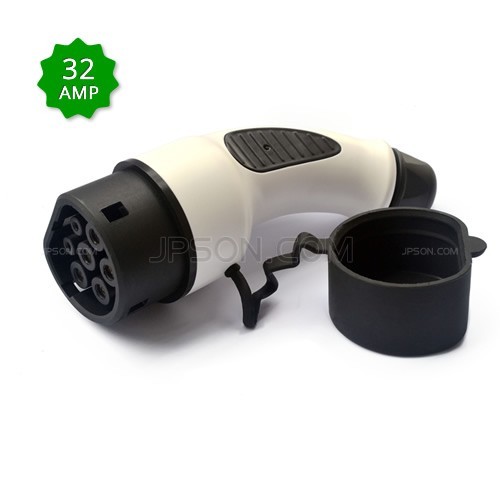

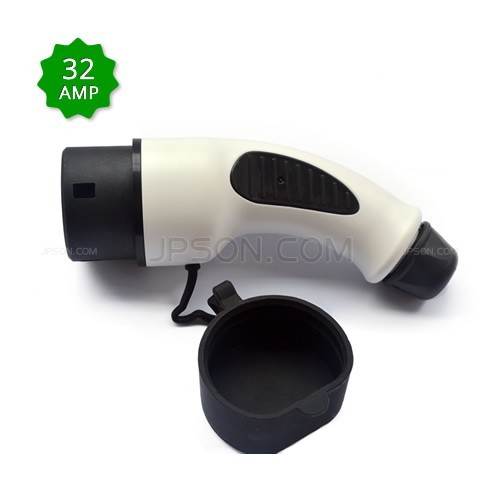

  • Rubber cap included

Parameters

  • Model: DSIEC2e-EV32P-NC
  • Rated current: 32A
  • Working voltage: 240/415V AC
  • Insulation resistance: > 1000M Ω
  • Terminal temperature rise: <50K
  • Withstand voltage: 2000V
  • Contact impedance: 0.5m Ω Max
  • Vibration resistance: Meet JDQ 53.3 requirements
  • Working temperature: -30 ° C ~ + 50° C

Materials

  • Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
  • Contact Pin: Copper alloy, silver or nickel plating
  • Sealing gasket: rubber or silicon rubber

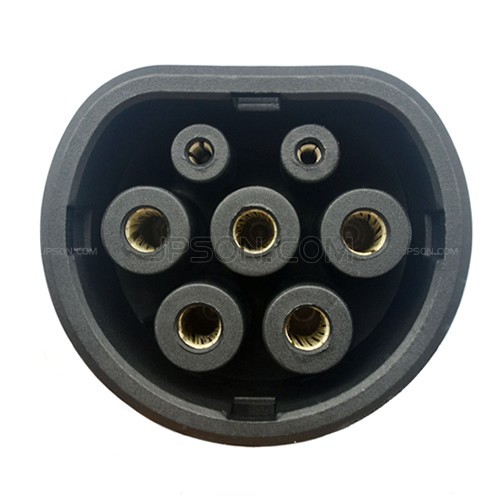

Insert arrangements and functional definition

Mark Functional defination
1-(L1) AC power
2-(L2) AC power
3- (L3) AC power
4-(N) Neutral
5-(PE) PE
6-(CP) Control confirmation
7-(PP) Connection confirmation

Model selection and the standard wiring

Model Number of inserts Cable Spec. Remark
DSIEC2b-EV16P 7 3*2.5mm2+2*0.5mm2

The length of the cord can be customized

DSIEC2e-EV16P 7 3*2.5mm2+2*0.5mm2
DSIEC2b-EV32P3 7 3*6mm2+2*0.5mm2
DSIEC2e-EV32P3 7 3*6mm2+2*0.5mm2



Reviews

  •   Gustavo Horta   Post on Mar 07, 2017 19:16

    Quality looks really good and seller was very supportive until unit was delivered!

  •   Cosio P.   Post on May 02, 2016 09:22

    Not yet installed, but it looks robust and quality material.
