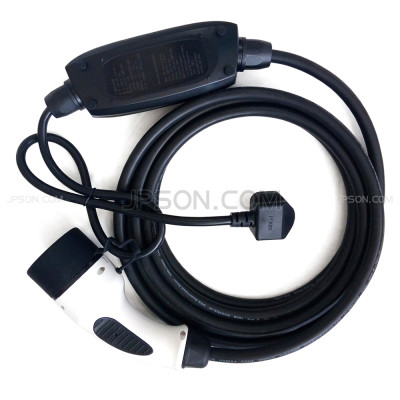

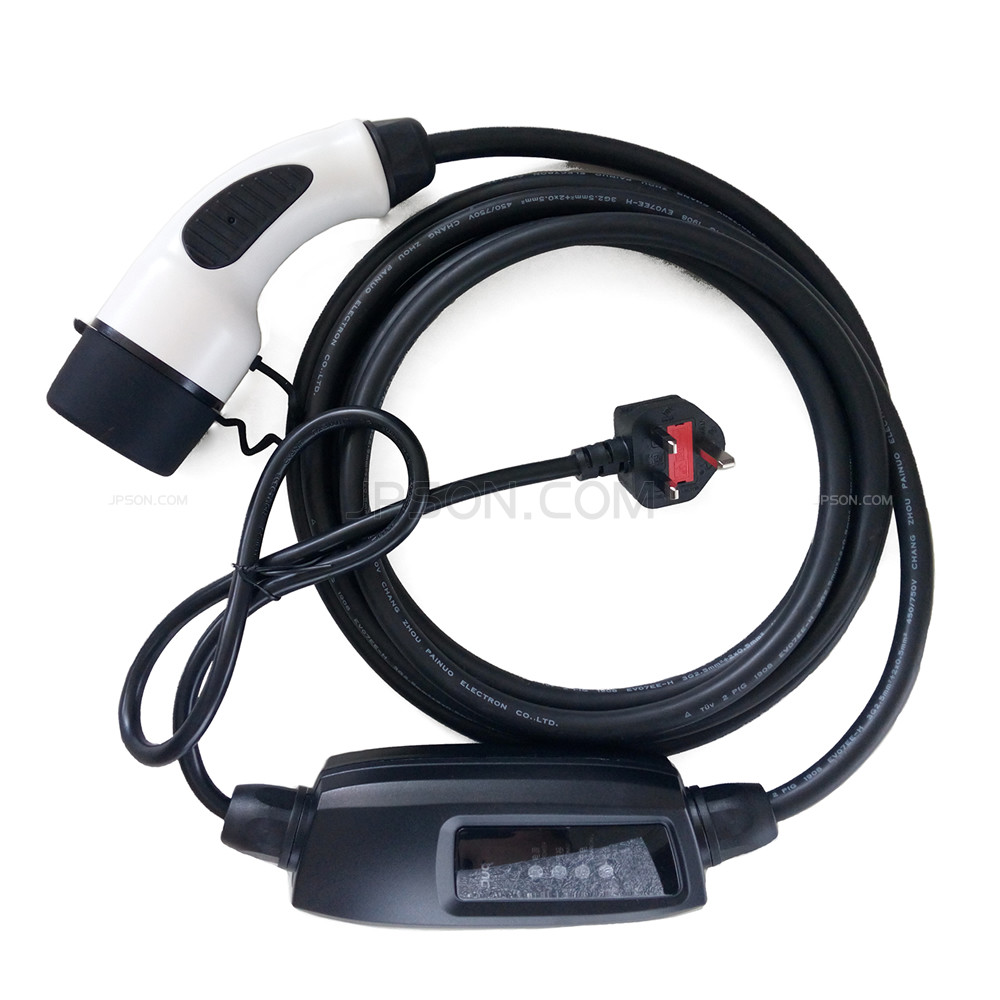

62196-2 Type 2 EV Charger Cord 110V~250V 13A with Carry Bag

Specifications

• Current: 13A
• Rated Voltage: 110V~250V
• Cable Length: 5m

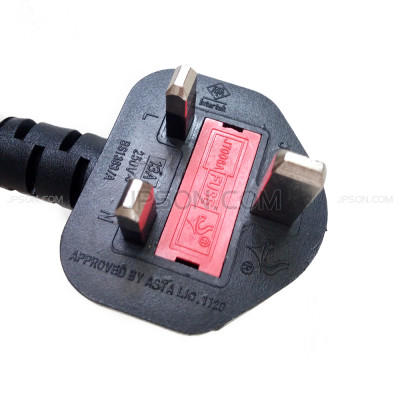

• Power Plug: UK

Overview

IEC 62196-2 Type 2 Portable EV Charger Cord 110V~250V 13Amp 5m Cable with Carry Bag

Notes:

This charger's power plug can be : UK plug, please leave a message when you order.

The contronl box not have swith and can not ajust the charging current.

Buy our charger will get a  as  a present.



• Charging plug meet 62196-2 IEC 2010 standard
• Control box meet  62196-2 IEC 2010 control principle
• Excellent protection performance, protection grade IP55(working conditon)

Parameters

• Reted current and voltage: 110V~250V AC 13A
• Insulation resistance: >1000MΩ (DC 500V)
• Terminal temperature rise: < 50K
• Withstand voltage: 2000V
• Working temperature: -30 ° C ~ + 50° C
• Mechanical life:no-load plug in/pull out> 10000 times
• Impat of external force: can afford 1m drop and 2T vechicle run over pressure

Materials

• Case Material: Thermo plastic,lame retardant grade UL94-0
• Contact Pin: Copper alloy, silver + thermo plastic on the top
• Sealing gasket: rubber or silicon rubber

Control Box

• Leakage protection(Restart recover)
• Over-voltage under-voltage protection (self-checking recover)
• Overload protection (self-checking recover)
• Lightning protecton

Control Box Status

	Power	Connected	Charging	Fault	Status
1	○	○	○	○	No Power
2	●	○	○	○	Power on, not connnect
3	●	●	○	○	Connected, not charg
4	●	●	◎	○	Charging
5	●	●	●	○	Charg Finish
6	●	○	○	●	Power-on Self-test Error
7	●	●	○	●	Communication Error
8	●	●	◎	●	Over-current protection
9	●	◎	◎	●	Earth leakage protection
10	●	○	○	◎	Overvoltage undervoltage protection
11	●	●	●	●	Overheating Protection

○ Light off; ● Green light on; ◎ Green light flashing;● Red light on; ◎ Red light flashing

Modle selection and the standard wiring

Model	Relate Current	Cable Spec.	Calbe Length	Cable Diamenter
3030-PSE-13-XC-ES	13A	3*2.5mm2+0.5mm2	5m	12mm

Package Include:

• 1 x 62196 Type 2 13A Protable Charger

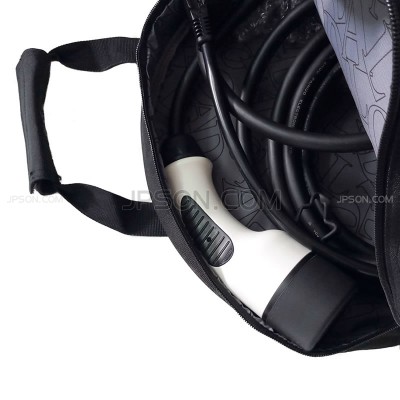

• 1 x Carray Bag
