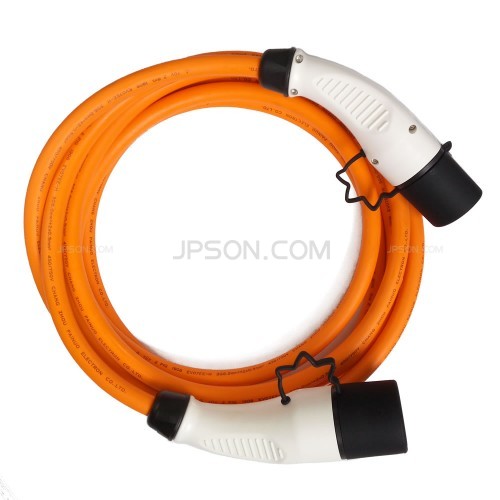

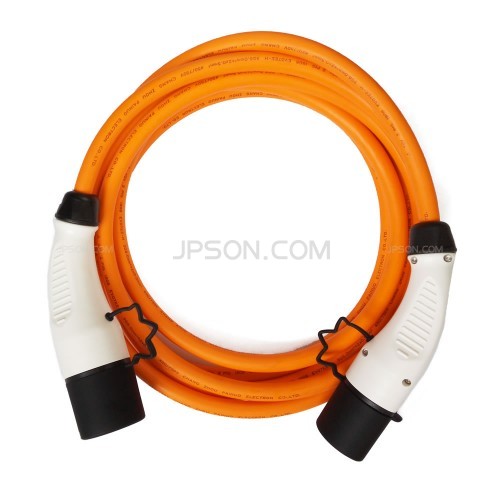

62196 Type 2 EV Charging Cable Male to Male 32A Single Phase
- Unit Price
-
US $186 / Piece
US $206
- Cable Length
- 5m
- Quantity
- Out of Stock
- Shipping Cost
- Free Shipping to United States via Register Airmail
-
Full Refund
Not receive your order
Items not as described
Secured by SSL
Pay by Paypal(credit card)
Other People Also Bought
62196-2 Type 2 Socket/Outlet Female 32A 3 Point Fixing for EV Charging
US $75
-
62196-2 Type 2 Socket/Inlet Male 32A for EV Charging
US $75
-
62196 Type 2 Connector/Cable 3 Phase 32A Level 2 for Electric Vehicle EV Charging
US $199
-
IEC 62196-2 Socket Lock(Interlocking Actuator) Model B
US $29
-
62196 Type 2 EV Charging Cable Male to Male 32A Single Phase
US $186
-
IEC 62196-2 Socket/Inlet Male 32A single phase with 1.5m Cable for EV Charging
US $98
Specifications
- Rated Current: 32A
- Phase: Single Phase
Overview

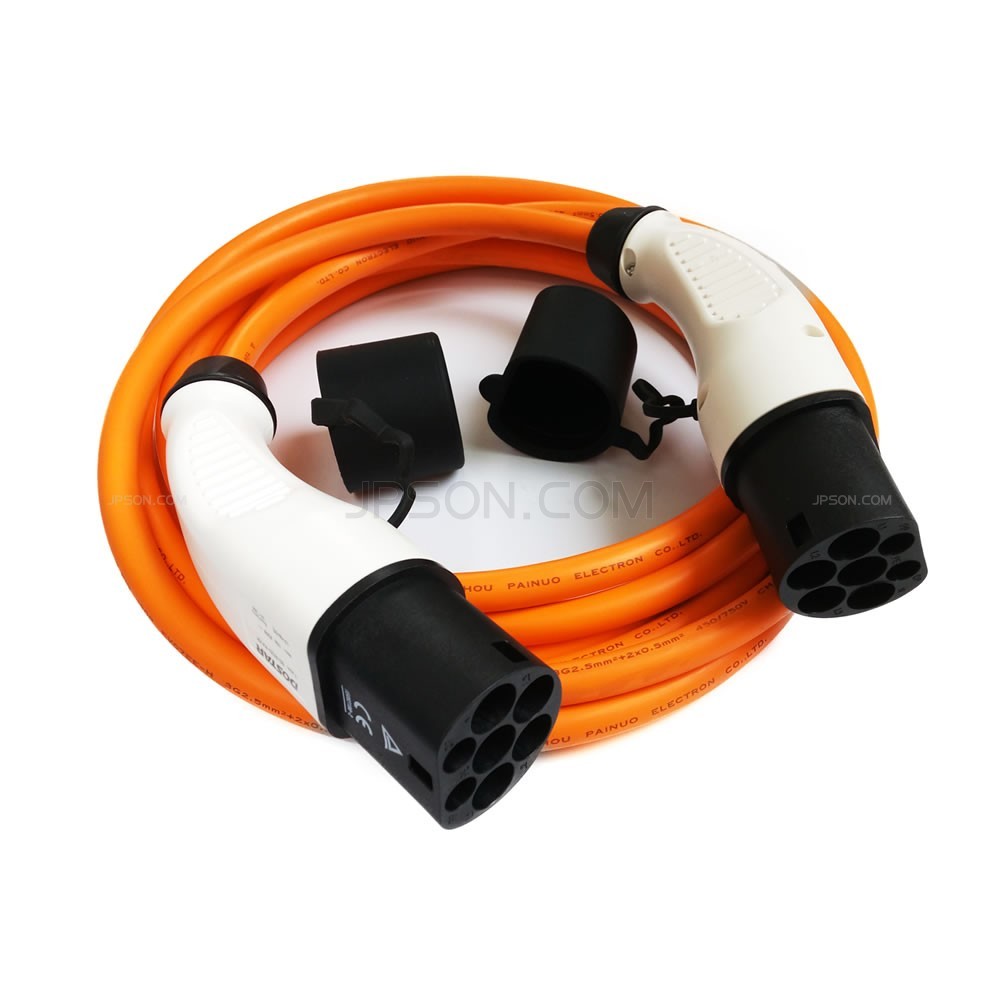

IEC 62196-2 Type2 Male to Male Cable Single Phase 32A Level1 Electric Vehicle (EV) Charging
- Cord lenght: 3m, 5m or customized; Rubber cap included.
- Meet IEC 62196-2 (Mennekes, Type 2) EU European standard
- Nice shape and easy to use, protection class IP54(in mated conditions)
Parameters
- Model: DSIEC-EV32P-NC
- Reted current: 32A
- Working voltage: 240/415V AC
- Insulation resistance: > 1000M Ω
- Terminal temperature rise: <50K
- Withstand voltage: 2000V
- Contact impedance: 0.5m Ω Max
- Vibration resistance: Meet JDQ 53.3 requirements
- Working temperature: -30 ° C ~ + 50° C
Materials
- Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
- Contact Pin: Copper alloy, silver or nickel plating
- Sealing gasket: rubber or silicon rubber
Insert arrangements and functional defination
| Mark | Functional defination |
|---|---|
| 1-(L1) | AC power |
| 2-(L2) | AC power |
| 3- (L3) | AC power |
| 4-(N) | Netural |
| 5-(PE) | PE |
| 6-(CP) | Control confirmation |
| 7-(PP) | Connection confirmation |
