IEC 62196-2 Type 2 Portable EV Charger Cord 16A (Include Carry Bag)
- Unit Price
-
US $215 / Piece
US $258
- Power Plug
- Schuko(EU) UK
-
Commodity was taken off shelves
-
Full Refund
Not receive your order
Items not as described
Secured by SSL
Pay by Paypal(credit card)
Other People Also Bought
-
62196-2 Type 2 Socket/Inlet Male 32A for EV Charging
US $75
-
IEC 62196-2 Socket/Inlet Male 32A single phase with 1.5m Cable for EV Charging
US $98
-
IEC 62196-2 Type 2 Plug Female 32A for EV Charging
US $76
-
62196-2 Type 2 Male Socket/Inlet 16A for EV Charging
US $75
-
IEC 62196-2 Type 2 Female Socket/Outlet 16A 3 Point Fixing for EV Charging
US $75
-
62196-2 Type 2 Male Plug 16A for EV Charging
US $65
Specifications
- Rated Current: 16A

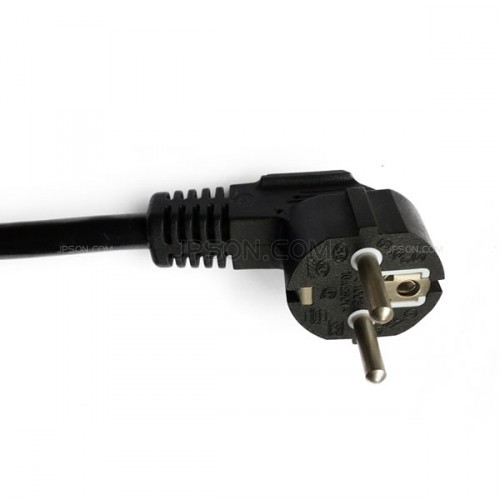

- Power Plug: Schuko(EU)
- Cable Length: 5m
- Rated Voltage: 110V~250V
Overview

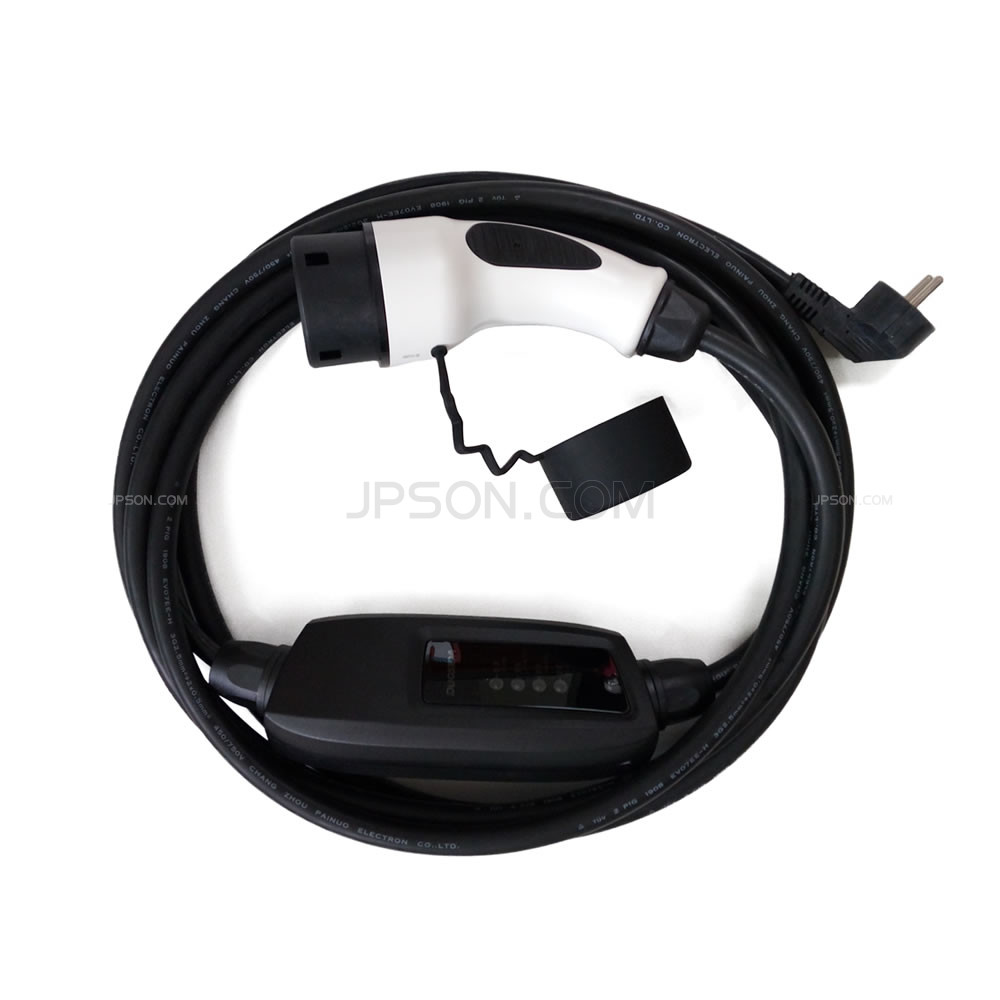

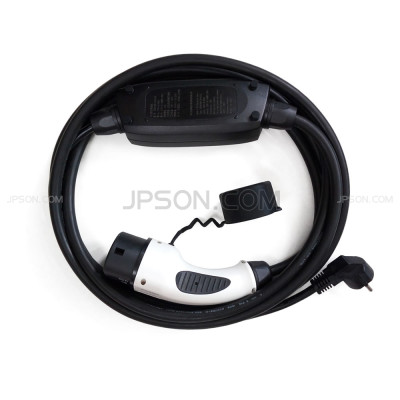

IEC 62196-2(Type 2) Portable Charger Cord EVSE 16A with Schuko Plug/5m Cable for Electric Vehicle Charging(Include a Carry Bag)
Notes:
This charger's power plug can be : Schuko(Euro 2 pin) plug,please leave a message when you order.
Buy our charger will get a as a present.
This charger compatible with: Audi A3 e-Tron, Chevrolet Spark, Mercedes B Class E-Celi, Mercedes SLS EV, Mercedes Vito E-Cell Van, BMW i3, BMW i8, Mercedes S500 PHEV, VW e-up and e-Golf, Porsche Panamera S PHEV, Volvo V60 PHEV( not compatiable with Renault brand car)
The contronl box not have a swith and can not ajust the charging current.

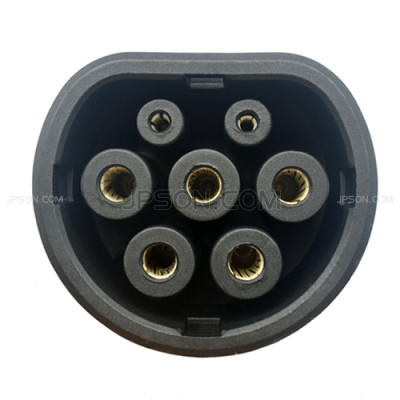

- Charging plug meet 62196-2 IEC 2010 SHEET 2-lle standard
- Power plug meet DIN VED 0620-1 standard
- Control box meet IEC 61851-1 2010 control principle
- Excellent protection performance, protection grade IP55(working conditon)
Parameters
- Reted current and voltage: 110V~250V AC 16A(single phase)
- Insulation resistance: >1000MΩ (DC 500V)
- Terminal temperature rise: < 50K
- Withstand voltage: 2000V
- Working temperature: -30 ° C ~ + 50° C
- Mechanical life:no-load plug in/pull out> 10000 times
- Impat of external force: can afford 1m drop and 2T vechicle run over pressure
Materials
- Case Material: Thermo plastic,lame retardant grade UL94-0
- Contact Pin: Copper alloy, silver + thermo plastic on the top
- Sealing gasket: rubber or silicon rubber

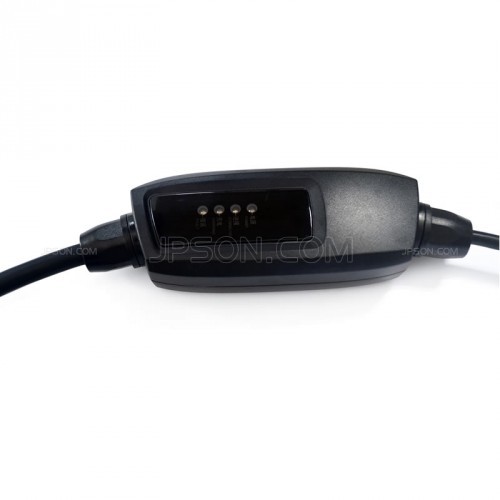

Control Box
- Leakage protection(Restart recover)
- Over-voltage under-voltage protection (self-checking recover)
- Overload protection (self-checking recover)
- Lightning protecton
Control Box Status
Power | Connected | Charging | Fault | Status | |
1 | ○ | ○ | ○ | ○ | No Power |
2 | ● | ○ | ○ | ○ | Power on, not connnect |
3 | ● | ● | ○ | ○ | Connected, not charg |
4 | ● | ● | ◎ | ○ | Charging |
5 | ● | ● | ● | ○ | Charg Finish |
6 | ● | ○ | ○ | ● | Power-on Self-test Error |
7 | ● | ● | ○ | ● | Communication Error |
8 | ● | ● | ◎ | ● | Over-current protection |
9 | ● | ◎ | ◎ | ● | Earth leakage protection |
10 | ● | ○ | ○ | ◎ | Overvoltage undervoltage protection |
11 | ● | ● | ● | ● | Overheating Protection |
○ Light off; ● Green light on; ◎ Green light flashing;● Red light on; ◎ Red light flashing
Warning
The working process of the electric current to bear large, does not contact with metal conductor to prevent to get an electric shock accidents.
Product shell is thermoplastic, does not be external shocks in order to avoid affecting the use.
Modle selection and the standard wiring
Model | Relate Current | Cable Spec. | Calbe Length | Cable Diamenter |
---|---|---|---|---|
2050-PSE-16-XC-ES | 16A | 3*2.5mm2+0.5mm2 |
5m |
12mm |
Package Include:
- 1 x Type2 16A Protable Charger

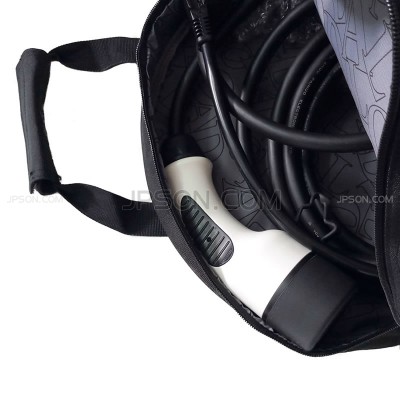

- 1 x Carray Bag
