Type2 Inlet Male 16A single phase with Cable

Mouse over to zoom in

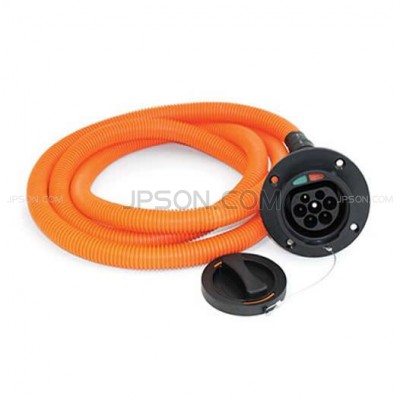

62196-2 Male Inlet/Socket 16A single phase with 1.5m Cable for EV Charging

63 SalesSKU: #1308 Add to wish list
Unit Price

US $85 / Piece

US $105

Optional
No Electronic Locker With Electronic Locker
Quantity
Only 1 left in stock
Shipping Cost
Free Shipping to United States via Register Airmail

Ships within 2 business days, estimated delivery time days

Full Refund

Not receive your order

Refund or Keep

Items not as described

Secured by SSL

Pay by Paypal(credit card)

Specifications

  • Model: DSIEC2e-EV16S
  • Current: 16A
  • Cable Length: 1.5m

Overview

IEC 62196-2(Type 2) Socket/Inlet Male(EV End) 16A single phase with 1.5m Cable & Lid, (Electromagnetic Lock optional)

Cable lenght:1.5m

Visit our: Type2 Socket Male 32A with 1.5m Cable

  • Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
  • Nice shape and easy to use, protection class IP54(in mated conditions)

Parameters

  • Model: DSIEC2f-EV32S-NC
  • Rated cureent: 16A
  • Operation voltage: 240/415V AC
  • Insulation resistance: > 1000MΩ (DC500V)
  • Terminal temperature rise: < 50K
  • Withstand voltage: 2000V
  • Vibration resistance: Meet JDQ 53.3 requirments
  • Contact impedance: 0.5mΩ Max

Materials

  • Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
  • Contact Pin: Copper alloy, silver plating
  • Sealing gasket: rubber or silicon rubber

Dimensions

Type2 Male Socket CAD Drawing
