Overview

IEC 62196-2 Type 2  Socket Lock(Interlocking Actuator) Model M(DSIEC-ELM)

Interlocking actuator for our band IEC 62196-2 Socket/Inlet( Female 16A, Female 32A,Male 16A, Male 32A)

Features

  • Instantaneous power supply mode, low energy loss
  • Small size, suitable for small space installation
  • Power failure or malfunction can be manual release
  • Non-detachable shell protection, protection grade IP55

Electrical Performance

  • Model: JP-EL-003
  • Activation < 300ms, continue 3 seconds max
  • Working temperature: -30°C ~+ 50°C
  • CE, TUV approved

Materials

  • Housing material: thermoplastic, flammability class UL94 HB

Standard Wiring

  • Cable specification: TUV 4*0.25mm2
  • Cable length: 600mm
  • Cable diameter: 4mm
  • Cable color: Black

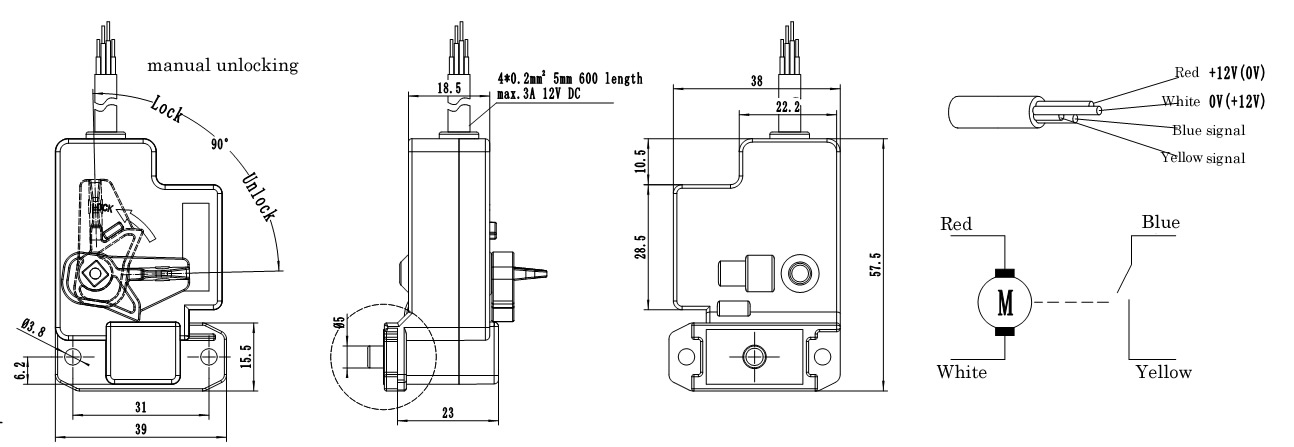

  Actuator(Motor) Position control(micro switch)
Wire Color Red White Blue Red
Locked 0V +12V Swith on
Unlocked +12V 0V Swith off
Max Current

Switch-on: 3A ;

Continuous: 0A

0.1A
Rated Impulse Withstand Voltage

12V DC

500V AC 1s

12V DC

500V AC 1s
