Only one left!!

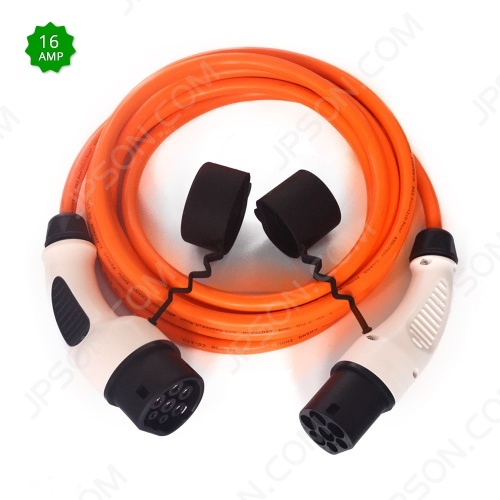

IEC 62196-2(Type 2,Mennekes) Connector/Cable Male to Female 3 Phase 16A Level1 for Electric Vehicle(EV) Charging
Visit our:Type2 Cable 32A 3 Phase , Type2 Cable 16A Single Phase,Type2 Cable 32A Single Phase
Work for:Tesla Model S, Smart, Renault Zoe, BMW i3 i8, Audi e-Tron, VW e-UP, VW e-Golf and other EV cars.
- Cord lenght: 3m, 5m or customized; Rubber cap included.
- Meet IEC 62196-2 standards(Mennekes, Type 2)
- Nice shape and easy to use, protection class IP54(in mated conditions)
Parameters
- Model: DSIEC2e-EV16P-NC
- Reted current: 16A
- Working voltage: 250V AC
- Insulation resistance: > 1000M Ω
- Terminal temperature rise: <50K
- Withstand voltage: 2000V
- Contact impedance: 0.5m Ω Max
- Vibration resistance: Meet JDQ 53.3 requirements
- Working temperature: -30 ° C ~ + 50° C
Materials
- Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
- Contact Pin: Copper alloy, silver or nickel plating
- Sealing gasket: rubber or silicon rubber
Insert arrangements and functional defination
Mark |
Functional defination |
1-(L1) |
AC power |
2-(L2) |
AC power |
3- (L3) |
AC power |
4-(N) |
Netural |
5-(PE) |
PE |
6-(CP) |
Control confirmation |
7-(PP) |
Connection confirmation |
Modle selection and the standard wiring
Model |
Number of inserts |
Cable Spec. |
Remark |
DSIEC2b-EV16P
DSIEC2e-EV16P
|
7 |
3*2.5mm2+2*0.5mm2 |
The length of the cable can be customized
|
