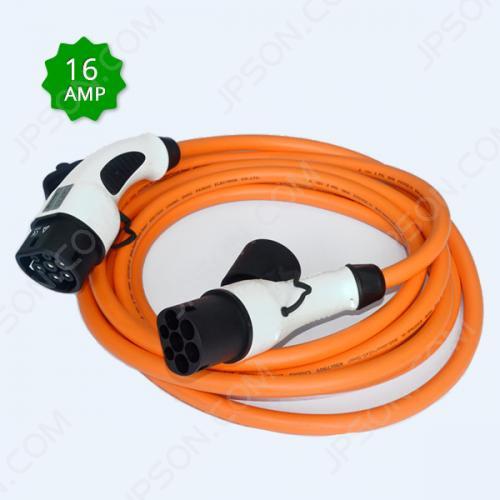

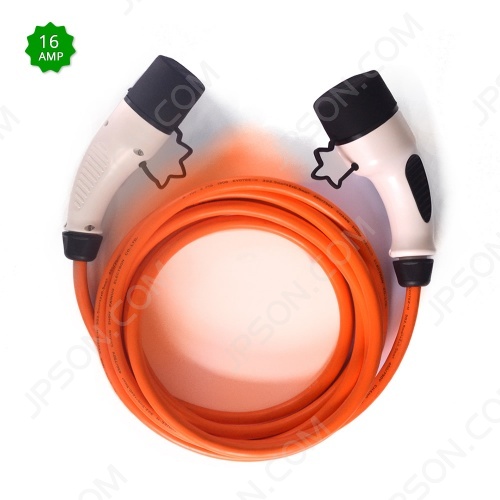

62196 Type2 Connector/Cable 16A 3 Phase for Electric Vehicle EV Charging(Only one left)
- Unit Price
-
US $135 / Piece
US $198
- Cable Length
- 3m Cable 5m Cable
-
Commodity was taken off shelves
-
Full Refund
Not receive your order
Items not as described
Secured by SSL
Pay by Paypal(credit card)
Other People Also Bought
Specifications
- Rated Current: 16A
Overview
Only one left!!
IEC 62196-2(Type 2,Mennekes) Connector/Cable Male to Female 3 Phase 16A Level1 for Electric Vehicle(EV) Charging
Visit our:Type2 Cable 32A 3 Phase , Type2 Cable 16A Single Phase,Type2 Cable 32A Single Phase
Work for:Tesla Model S, Smart, Renault Zoe, BMW i3 i8, Audi e-Tron, VW e-UP, VW e-Golf and other EV cars.

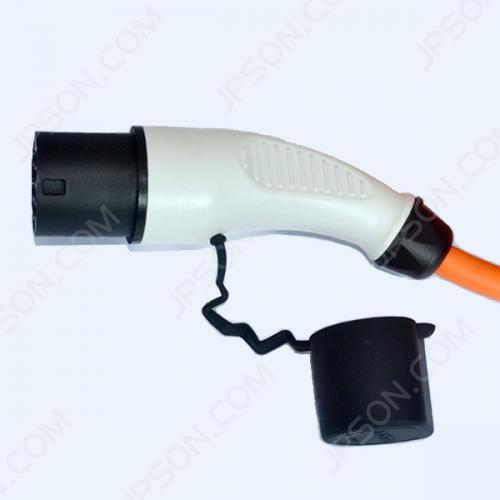

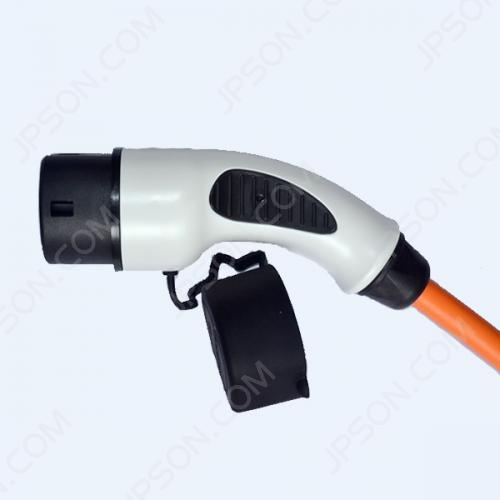

- Cord lenght: 3m, 5m or customized; Rubber cap included.
- Meet IEC 62196-2 standards(Mennekes, Type 2)
- Nice shape and easy to use, protection class IP54(in mated conditions)
Parameters
- Model: DSIEC2e-EV16P-NC
- Reted current: 16A
- Working voltage: 250V AC
- Insulation resistance: > 1000M Ω
- Terminal temperature rise: <50K
- Withstand voltage: 2000V
- Contact impedance: 0.5m Ω Max
- Vibration resistance: Meet JDQ 53.3 requirements
- Working temperature: -30 ° C ~ + 50° C
Materials
- Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
- Contact Pin: Copper alloy, silver or nickel plating
- Sealing gasket: rubber or silicon rubber
Insert arrangements and functional defination
| Mark | Functional defination |
|---|---|
| 1-(L1) | AC power |
| 2-(L2) | AC power |
| 3- (L3) | AC power |
| 4-(N) | Netural |
| 5-(PE) | PE |
| 6-(CP) | Control confirmation |
| 7-(PP) | Connection confirmation |
Modle selection and the standard wiring
| Model | Number of inserts | Cable Spec. | Remark |
|---|---|---|---|
| 7 | 3*2.5mm2+2*0.5mm2 |
The length of the cable can be customized |
