IEC 62196-2 Type 2 Cable 16A Single Phase for EV Charging

19 SalesItem#: 1053 Add to wish list
Unit Price:

US $156 / Piece

US $216

Cable Length:
3m Cable 5m Cable
Quantity:
Only 2 left in stock
Shipping Cost:
Free Shipping to United States via Register Airmail
Ships within 3 business days, estimated delivery time days


Full Refund

Not receive your order

Refund or Keep

Items not as described

Secured by SSL

Pay by Paypal(credit card)

Base Infomation

  • Rated Current:16A
  • Phase:Single Phase

Product Description

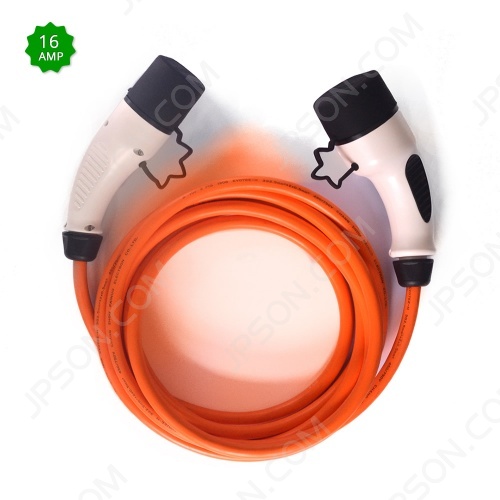

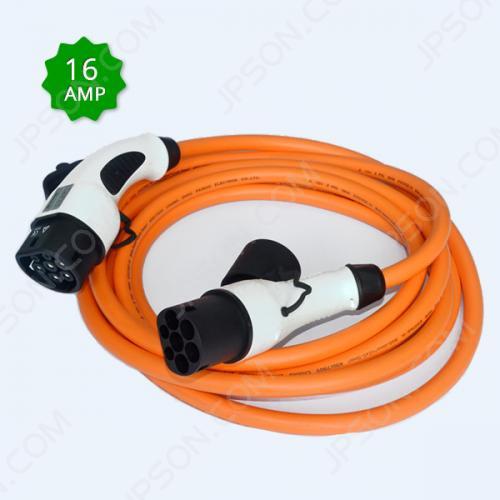

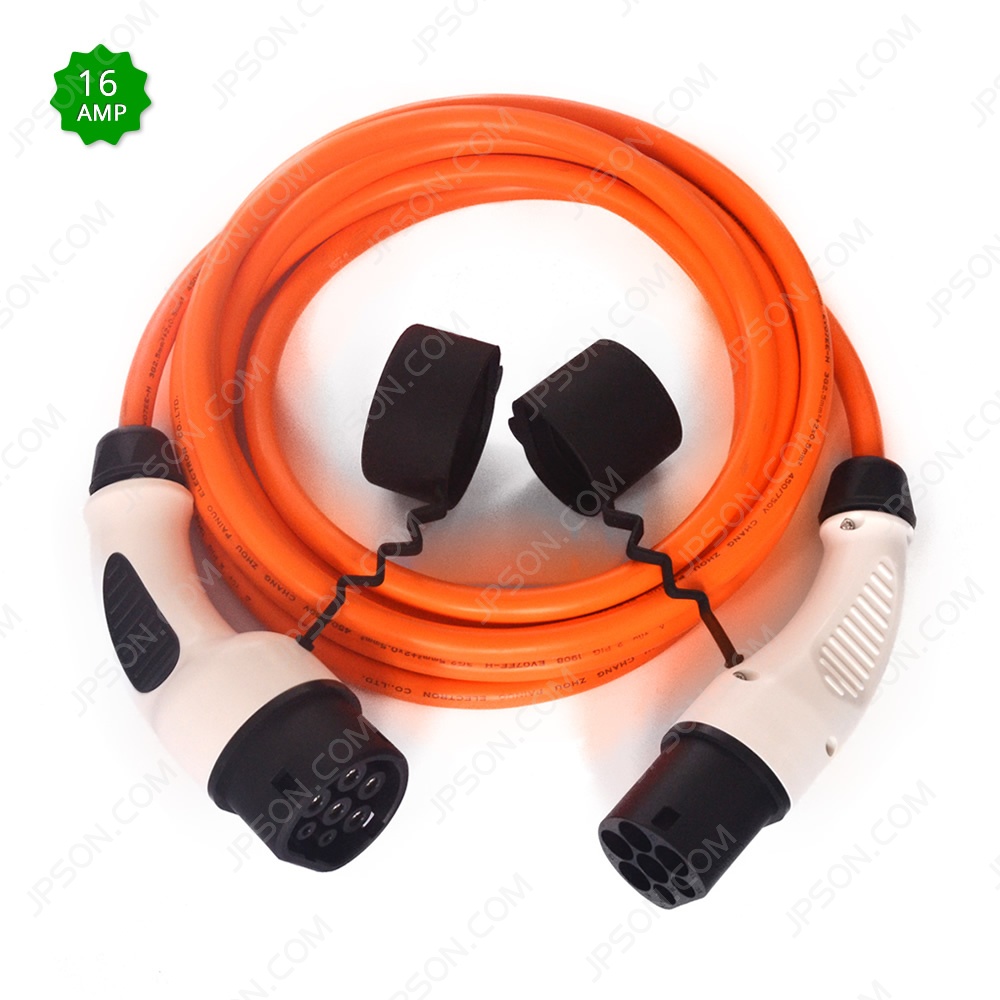

IEC 62196-2 Type 2 Charging Cable Male to Female 16A Single Phase for Electric Cars

Visit our: Type2 Cable 32A Single Phase,Type2 Cable 16A 3 Phase,Type2 Cable 32A 3 Phase

Work for:Tesla Model S, Smart, Renault Zoe, BMW i3 i8, Audi e-Tron, VW e-UP, VW e-Golf and other EV cars.

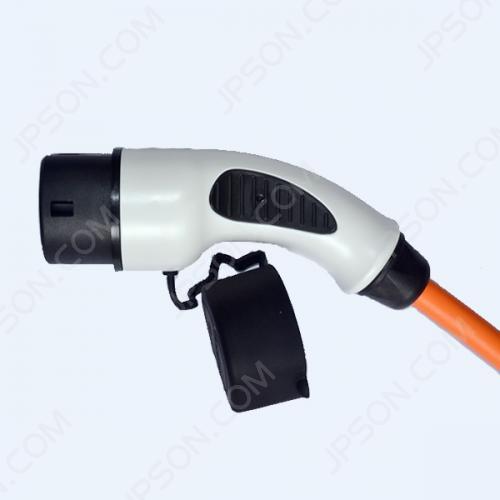

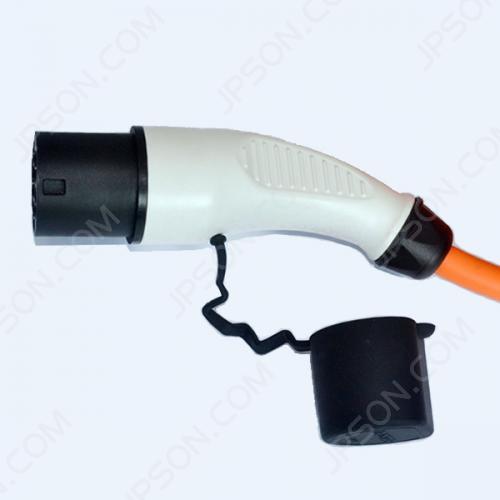

  • Cord lenght: 3m, 5m or customized; Rubber cap included.
  • Meet IEC 62196-2 (Mennekes, Type 2) EU European standard
  • Nice shape and easy to use, protection class IP54(in mated conditions)

Parameters

  • Model: DSIEC2e-EV16P-NC
  • Reted current: 16A
  • Working voltage: 250V AC
  • Insulation resistance: > 1000M Ω
  • Terminal temperature rise: <50K
  • Withstand voltage: 2000V
  • Contact impedance: 0.5m Ω Max
  • Vibration resistance: Meet JDQ 53.3 requirements
  • Working temperature: -30 ° C ~ + 50° C

Materials

  • Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
  • Contact Pin: Copper alloy, silver or nickel plating
  • Sealing gasket: rubber or silicon rubber

Insert arrangements and functional defination

Mark Functional defination
1-(L1) AC power
2-(L2) AC power
3- (L3) AC power
4-(N) Netural
5-(PE) PE
6-(CP) Control confirmation
7-(PP) Connection confirmation

Modle selection and the standard wiring

Model Number of inserts Cable Spec. Remark

DSIEC2b-EV16P

DSIEC2e-EV16P

7 3*2.5mm2+2*0.5mm2

The length of the cable can be customized
